This page lists GCC601x/602x FAQs for different modules:
Network Nodes Module Related FAQ
- Home Module Related FAQ:
What USB/micro SD storage formats does the system support?
GCC60xx supports exFAT, ext4, FAT32, F2FS and NTFS for the external storage format. It's recommended to use ext4 format.
Does GCC60xx support multiple account management?
PBX and UC Endpoints module for GCC60xx support multiple accounts. It can be configured under GCC60xx webUI->Home Page-> System Settings->User Management Module.
How can I turn on or turn off email notifications?
Email notifications for GCC60xx can be turned on or turned off via option "Push to Email" under GCC60xx webUI->Homepage->Message Center->Message Settings.
How can I reset the administrator password if I forgot it?
GCC60xx supports password retrieval via email and mobile number. To reset administrator password:
First, you need to log in and navigate to GCC601x webUI->Home->System Settings, go to [Email Settings] or [SMS Settings] to configure SMTP and SMS servers.
Then, you can set your "Email" or "Mobile Number" information under [Setup Wizard] or from Home->System Settings->Security Settings->[Account Settings], which is used to retrieve the password.
If none of them are set, you can restore the device to factory settings and find the initial password on the sticker located on the bottom or back of the device to log in. The initial username is admin.
What is the default SSID and password broadcast by the GCC6010W?
Once the GCC6010W is connected to a network, it will broadcast a default SSID based on its MAC address and a random password. The SSID consists of the last 6 digits of the MAC address, which you can find on the product box, or the sticker on the bottom of the device. The default password is the same as default Web UI login password.
How can I upgrade firmware for GCC60xx?
Users can log in to GCC60xx Web UI->Home->Maintenance->Upgrade page to perform the upgrade. The following lists various methods for upgrading the firmware.
- Official online upgrade: This method allows upgrading directly from the Grandstream firmware server. The administrator can click “Detect New Version”to check for any new firmware releases. When a new firmware version is available, the administrator can proceed with upgrading the device.
- Network upgrade: Typically used for batch upgrading. Users can configure the server address that hosts the firmware file and upgrade devices in batch.
- Allow DHCP options 43 and 66 to set the server: Typically used for batch upgrading. When enabled, use the server path sent by the DHCP option to request firmware information; when disabled, use the configured server path to request firmware information by default. This configuration does not take effect in the official online upgrade mode.
- Schedule Upgrade: Assign a specific time schedule for devices to check for and install new firmware.
- Manual firmware upgrade: Users can directly upload firmware files on the device's Web UI.
How can I restore GCC60xx to factory settings?
Users can reset the device to factory default settings from the web interface or by simply pressing the reset button on the device.
Method 1: Factory reset the device from the web interface.Method 2: Hard Reset.
- When GCC6010 is powered on, insert a pin into the reset hole on the back of the device, hold it for 10 seconds, and then release it.
- When GCC6010W is powered on, press and hold the reset button on the bottom of the device for 10 seconds and then release it.
- When the GCC6011/GCC6020/GCC6021 is powered on, insert a pin into the reset hole on the front of the device, hold it for 10 seconds, and then release it.
For all methods above for different models, the device LED will flash red and then reboot automatically. The factory settings will take effect after device boots up.
- Networking Module Related FAQ:
Noted:
GWN series FAQs can be helpful for reference when using GCC60xx network module. Users can find GWN series related FAQs here: https://blog.grandstream.com/faq/gwn_series
What networking mode does GCC60xx support?
GCC60xx series supports routing mode.
How many VLANs does GCC60xx support?
Up to 32 VLANs can be supported.
What types of VPNs are supported on GCC60xx?
The supported VPN types and specifications are as follows.
|
Model |
GCC6010 |
GCC6011 |
GCC6010W |
GCC6020 |
GCC6021 |
|
|
VPN Total Tunnels |
100 | |||||
|
PPTP Tunnels |
Client |
100 |
||||
|
Server |
3 |
5 |
||||
|
IPSec Tunnels |
Site-to-Site |
16 |
||||
|
Client-to-Site |
3 |
5 |
||||
|
OpenVPN® Tunnels |
Client |
8 |
||||
|
Server |
8 |
|||||
|
L2TP Tunnels |
Client |
100 |
||||
|
Server |
3 |
5 |
||||
|
WireGuard® Tunnels |
WireGuard® |
3 |
5 |
|||
|
Peer |
256 |
|||||
|
User Management |
Total |
256 |
||||
|
PPTP |
64 |
|||||
|
L2TP |
64 |
|||||
|
OpenVPN® |
256 |
|||||
|
IPSec |
256 |
|||||
- Firewall Module Related FAQ:
What is the purchase option for GCC60xx firewall license?
All GCC60xx series come with a one-year free trial of firewall license. One-year free trial period starts from the activation date. For purchase options, please find firewall service plan information HERE.
How can I update the signature library?
After logging in to GCC60xx Web UI->Firewall->Overview->Package Information page and "activating" the firewall security protection function, all functions have a one-year free automatic signature library update service. The update detection interval can be manually set on the [Signature Library Update] pages.
When are the firewall signature databases updated? How many signatures are included?
The update frequency and signature amount for the GCC series signature databases are as follows (as of June 6, 2025):
- Antivirus Signature Database: Updated daily, with over 5.4 million signatures.- IDS/IPS Signature Library: Updated monthly, with more than 12,000 rules.
- Application Signature Library: Updated weekly, identifying over 2,200 applications.
- URL Signature Database: Updated monthly, identifying over 1.4 million URLs.
Is there a situation where the device firmware is not compatible with the latest signature library?
Yes. If the GCC system firmware is lower than V1.0.7.10, it will not support updating to the latest firewall signature library. To ensure that your security services continue to be available, please update the device firmware to the latest version immediately.
- Network Nodes Module Related FAQ:
Which APs and switches can be managed by GCC60xx?
The following AP/switch models and firmware version can be managed by GCC60xx:
-GWN7600/7610/7660/7661/7662/7664/7630/7602/7605/7615/7624/7625/7665/7603/7660E/7660ELR/7664E/7664ELR/7661E/7604/7670/7672/7674 APs firmware version: 1.0.25.30+
- GWN7801(P)/7802(P)/7803(P) switch firmware version: 1.0.5.34+
- GWN7811(P)/7812(P)/7813(P)/7830/7831 switch firmware version: 1.0.7.50+
- GWN7806(P)/GWN7816(P)/GWN7832 switch firmware version: 1.0.9.15+
How many APs and switches can GCC60xx manage?
- GCC601x(W) supports managing up to 150 GWN APs, 50 GWN switches and 500 client devices.- GCC6020 supports managing up to 300 GWN APs, 100 GWN switches and 500 client devices.
- GCC6021 supports the management of up to 300 GWN APs, 100 GWN switches and 1,000 client devices.
Note:
UCM63xx FAQs can be helpful for reference when using GCC60xx PBX module. Users can find UCM63xx related FAQs here: https://blog.grandstream.com/faq/product-related-questions/ucm63xx
How many extensions and concurrent calls does GCC60xx support?
The GCC601x(W) series supports 12 extensions and 4 concurrent calls by default. The GCC602x series supports 50 extensions and 16 concurrent calls by default. You can purchase a PBX license to expand the maximum specifications as follows.
- For GCC601x(W):
|
Number of Users/Extensions |
Maximum Number of Concurrent Calls |
|
100 |
24 |
|
150 |
20 |
|
200 |
12 |
- For GCC602x:
|
Number of Users/Extensions |
Maximum Number of Concurrent Calls |
|
500 |
120 |
|
750 |
90 |
|
1000 |
60 |
What PBX Upgrades License options are available?
The GCC60xx series allows the purchase of PBX Upgrades License packages with the following specifications:
- The GCC601x series supports the purchase of the UC-50 SMB Upgrade Package; the GCC602x series supports the purchase of the UC-200 SMB Upgrade Package.
- The GCC601x and GCC602x series allow the purchase of the following four additional services:
-
- Extra 50 Users/Extensions
- Extra 4 Concurrent Calls
- Extra 100 Users/Extensions
- Extra 16 Concurrent Calls
Click here to view more information about purchasing PBX Upgrades License.

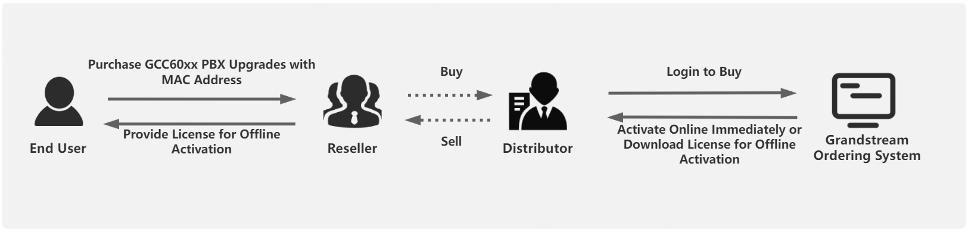

How can I purchase a PBX Upgrades License?
Please refer to the following diagram.
What VoIP devices can GCC60xx manage?
The following Grandstream VoIP devices can be managed by GCC601x:
- IP Voice Telephones
- GXP21xx series
- DP75x series
- GRP series
- WP series
- GHP series
- IP Video Telephones
- GXV33xx/34xx series
- Conference Devices
- GVC32xx series
- GSC35xx series
- GAC25xx series
- Facility Access Device
- GDS37xx series
- IP Cameras
- GSC36xx series
- ATA Device (Analog Telephone Adapter)
- HT8xx series
- Gateway
- GXW4xxx series
Which VoIP devices can be supported by GCC60xx Fast Provision?
This feature is available on most Grandstream IP Phones (with supported firmware).
- WP816/826 1.0.1.9+
- GXV3450/70/80 1.0.3.11+
- GXV33xx series
- GRP260x series
- GRP261x/262x/263x/26x0 series
- GXP21xx series
- WP820
Which traditional surveillance cameras can be integrated with GCC60xx IPC device management?
GCC60xx has a built-in SIP video fusion gateway, supports the allocation of SIP short numbers to bundle traditional IPC devices, and is compatible with all surveillance cameras on the market that support the RTSP protocol. It supports bundling up to 120 surveillance cameras.
Does GCC60xx support Grandstream Cloud Management?
Yes, the GCC Router and PBX modules are supported now. The Firewall module cloud management is currently not supported.
Which model supports M.2 SSD?
GCC6011, GCC6020 and GCC6021.
Does GCC60xx support custom LED light colors?
No. GCC60xx series does not support custom LED light colors.
Does GCC60xx support wall or rack mounting?
The installation methods supported by different models are as follows:
- GCC6011/GCC6020 supports desktop placement, wall mounting and rack mounting.- GCC6010 supports desktop and wall installation but not rack installation.
- GCC6010W is a desktop model, which means it does not support wall-mounting or rack-mounting.
- GCC6021 supports desktop placement and rack installation but not wall installation.
What SFP modules are supported by GCC60xx SFP port?
The following SFP optical modules are tested with GCC601x:
| Optical module brand | Optical module specifications | Optical module model | |
| Grandstream | 1G, multi-mode dual-fiber | F-MM850-550M-1.25G | |
| Grandstream | 1G, single-mode dual-fiber | F-SM1310-20KM-1.25G | |
| Grandstream | 10G, multi-mode dual-fiber | F-MM850-300M-10G | |
| Grandstream | 10G, single-mode dual-fiber | F-MM1310-10KM-10G | |
| TP-Link | 1G, single-mode dual-fiber | TL-SM312LS-20KM | |
| TP-Link | 2.5G, single-mode single-fiber SC | TL-SM411SSA-500m | |
| TP-Link | 2.5G, single mode single fiber LC | TL-SM411LSA-5KM | |
| SAMZHE | 1G, single-mode dual-fiber | XSZ-MMQS | |
| SAMZHE | 10G, multi-mode dual-fiber | SPF+ 850nm 300M LC DDM | |
| SAMZHE | 10G, single-mode dual-fiber | SPF+ 1310nm 20KM LC DDM | |
| POTRON | 1G, multi-mode dual-fiber | 850nm 550m LC | |
| POTRON | 1G, single-mode dual-fiber | 1310nm 20km LC SM | |
| POTRON | 10G, single-mode dual-fiber | F-MM1310-10KM-10G | |
| H3C | 10G, multi-mode dual-fiber | 300m-850nm-MM-SFP+ | |
| EB-link | 10G, multi-mode dual-fiber | SFP+ 850nm 300M DDM | |
| EB-link | 10G, single-mode dual-fiber | SFP+ 1310nm 10Km DDM | |
| 10GTek/ 10GbE | 10G, multi-mode dual-fiber | SFP+ 850nm 300m | |
| 10GTek/ 10GbE | 10G, single-mode dual-fiber | SFP+1310nm 10Km |
The following SFP optical-to-electrical modules are tested with GCC601x:
|
Optical-to-electrical
module brand |
Optical-to-electrical
module specifications |
Optical-to-electrical
module model |
|
|
TP-Link
|
1G
|
TL-SM310U
|
|
|
TP-Link
|
2.5G
|
TL-SM410U
|
|
|
POTRON
|
1G
|
SFP191C-ELE0-Electrical Module-1G
|
|
|
Scopto
|
1G
|
1000Base-T/RJ45
|
|
|
Scopto
|
2.5G
|
ZK-SFP-2.5G-TX
|
|
|
Humanchem
|
1G
|
RJ45
|
|
|
SAMZHE
|
1G
|
SZ-QGE
|
|
|
Cisco
|
1G
|
SFBR-5766PZ-CS2
|
|
|
Shengwei
|
1G
|
BGR0125G
|
|
|
NOKOXIN
|
1G
|
SFP-T
|
|
|
Zhongtian Hitech
|
1G
|
SFP-GE-T
|
|
|
HISILICON
|
1G
|
OM9150
|
|
|
FHTCEN
|
1G
|
SFP-WDM-0203A
|
|
|
POTRON
|
1G
|
SFP191C-ERE0
|
|
|
10GTek
|
1G
|
ASF-GE-T1
|
|
|
EB-link
|
2.5G
|
EB-SFP-GE-T
|
|
|
EB-link
|
2.5G/1G/100M adaptive
|
EB-SFP-2.5GT
|
|
|
LIANGUO
|
2.5G
|
LG-2.5GE-SFP
|
|
|
HYMX
|
2.5G
|
SFP-2.5GT
|
|
|
1SFP.COM
|
2.5G
|
2.5GTR-RM
|
The following SFP optical modules are tested with GCC6020:
| Optical module brand | Optical module specifications | Optical module model | |
| Grandstream | 10G, multi-mode dual-fiber | F-MM850-3000M-10G |
|
| Grandstream | 10G, single-mode dual-fiber | F-SM1310-10KM-10G | |
| Grandstream | 1.25G, dual-mode fiber | F-MM850-550M-1.25G | |
| Grandstream | 1.25G, single mode fiber | F-SM1310-20KM-1.25G | |
| SFP+ | 10G, single-mode dual-fiber |
SFP-10G-ZR-SM1310 |
|
| POTRON | 10G, Fiber | 10G SFP+ AOC |
|
| UBIQCOM | 10G, Fiber | UB5223-SX-60A/B | |
| Scopto | 10G, dual-mode dual-fiber | ZK-10G-SR | |
| TP-LINK |
10G, multi-mode dual-fiber | TL-SM512LM-300M | |
| H3C | 10G, single-mode dual-fiber | SFP-XG-LX-SM1310 | |
| SAMZHE | 10G, single-mode single-fiber | XSZ-SMW10AB |
The following SFP optical-to-electrical modules are tested with GCC6020:
| Optical-to-electrical module brand |
Optical-to-electrical module specifications |
Optical-to-electrical module model |
|
| ADOP | 10G | SFP-10GB-T-AQR | |
| SFP-10G | 10G | SFP-10G-T | |
| POTRON | 10G | 10G copper SFP+ | |
| POTRON | 1G | 1G Copper SFP | |
| Guanglian | 10G/2.5G/1G | GL-9630TQ plus | |
| Guanglian | 1G | GL-2401100TI | |
| TP-Link |
10G | TL-SM510U | |
| Scopto | 10G | ZK-10G-TX | |
| Scopto | 10G | ZK-10G-TX80 | |
| Scopto | 1G | ZK-GE-TX |
|
| 10GTek | 10G | ASF-10G2-T |
|
| LIANGUO | 2.5G | LG-2.5G-SFP |
|
| Huigu | 1G | HG-SFP-T | |
| NOKOXIN | 1G | SFP-GE-TW | |
| Shengwei | 1G | BGR0125G 1000M SFP | |
| FHTCEN | 1G | FH-SFP-GE |
The following SFP optical modules are tested with GCC6021:
| Optical module brand | Optical module specifications | Optical module model | |
| Grandstream | 10G, multi-mode dual-fiber | F-MM850-3000M-10G |
|
| Grandstream | 10G, single-mode dual-fiber | F-SM1310-10KM-10G | |
| Grandstream | 1.25G, dual-mode fiber | F-MM850-550M-1.25G | |
| Grandstream | 1.25G, single mode fiber | F-SM1310-20KM-1.25G | |
| SFP+ | 10G, single-mode dual-fiber |
SFP-10G-ZR-SM1310 |
|
| POTRON | 10G, Fiber | 10G SFP+ AOC |
|
| UBIQCOM | 10G, Fiber | UB5223-SX-60A/B | |
| Scopto | 10G, dual-mode dual-fiber | ZK-10G-SR | |
| TP-LINK |
10G, multi-mode dual-fiber | TL-SM512LM-300M | |
| H3C | 10G, single-mode dual-fiber | SFP-XG-LX-SM1310 | |
| SAMZHE | 10G, single-mode single-fiber | XSZ-SMW10AB |
The following SFP optical-to-electrical modules are tested with GCC6021:
|
Optical-to-electrical
module brand |
Optical-to-electrical
module specifications |
Optical-to-electrical
module model |
|
|
ADOP
|
10G
|
SFP-10GB-T-AQR
|
|
|
SFP-10G
|
10G
|
SFP-10G-T
|
|
|
POTRON
|
10G
|
10G copper SFP+
|
|
|
POTRON
|
1G
|
1G Copper SFP
|
|
|
POTRON
|
2.5G
|
2.5G Copper SFP
|
|
|
Guanglian
|
10G/2.5G/1G
|
GL-9630TQ plus
|
|
|
Guanglian
|
1G
|
GL-2401100TI
|
|
|
TP-Link
|
10G
|
TL-SM510U
|
|
|
TP-Link
|
2.5G
|
TL-SM410U
|
|
|
Scopto
|
10G
|
ZK-10G-TX
|
|
|
Scopto
|
10G
|
ZK-10G-TX80
|
|
|
Scopto
|
1G
|
ZK-GE-TX
|
|
|
10GTek
|
10G
|
ASF-10G2-T
|
|
|
Cisco
|
1G
|
GLC-T 30-1410-04
|
|
|
Avago
|
1G
|
ABCU-5710RZ
|
|
|
Huigu
|
|
1G
|
HG-SFP-T
|
|
NOKOXIN
|
|
1G
|
SFP-GE-TW
|
|
Shengwei
|
|
1G
|
BGR0125G 1000M SFP
|
|
FHTCEN
|
|
1G
|
FH-SFP-GE
|
|
HYMX
|
2.5G
|
SFP-L2.5GF-T
|
|
|
1SFP
|
2.5G
|
ASF-2G2-T
|
|
|
LIANGUO
|
2.5G
|
LG-2.5G-SFP
|
What are the functions of the MGMT port/HA port/Console port on GCC6021?
The installation methods supported by different models are as follows:
- MGMT port: used for remote management and monitoring of the device. Use a network cable to directly connect the computer to the MGMT port of the device, and log in to the device through the pre-configured IP address (192.168.1.1) of the MGMT port for Web management.
- HA port: used to achieve high availability between devices.
- Console port: used for initial configuration and subsequent management, using a serial line to interact directly with the command line interface of the device. Serial port login does not involve the network layer and does not require the IP address of the device, but requires the account and password for logging in to the device.
What power supply does GCC60xx support?
- Power Input:
[GCC6010/GCC6011] Built-in power supply, input: 48VDC 1A (48W)
[GCC6010W] Built-in power supply, input: 12VDC 1.5A ( 18W)
[GCC6020] Built-in power supply and RPS redundant power supply system, input: 54VDC 2.8A (150W)
[GCC6021] Built-in power supply and RPS redundant power supply system, input: 54VDC 7.8A (420W)
- Power Output:
[GCC6010/GCC6011] 4 PoE Out ports, maximum PoE power: 36W[GCC6010W] No PoE Out
[GCC6020] 5 PoE+ Out ports, maximum PoE power: 120W
[GCC6021] 16 PoE+ Out and 8 PoE++ Out ports, maximum PoE power: 370W
